NEMA 5-15P USA 3-pin Plug To C19 SJT Power Cord
Original price was: $12.00.$8.40Current price is: $8.40.
14 AWG Up to 105C 3 Wire
- The quality you expect, the service you deserve.
- Shop with Zero Worries
- Multiple payment methods, 100% payment security
- Quality and Affordability Combined
Description

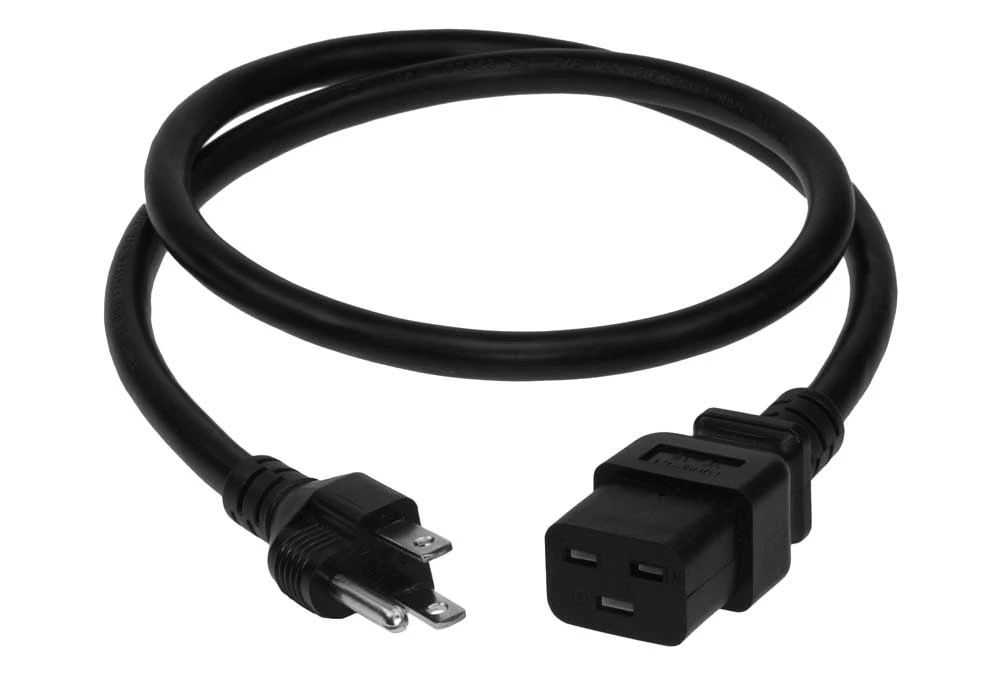

USA 5-15P to C19 3 foot power cord: NEMA 5-15P 3 pin plug to IEC C19 with 14/3 SJT black wire, 3 feet with UL and CSA approvals.
CAUTION NOTE:?,�?,�While 100% of the components for this cord are UL approved, UL does not certify or allow configurations where the receptacle amp capabilities exceed those of the plug as a General Use item.?,� SF Cable urges caution when using this product and is not responsible is any way for any damages caused by using this cord.?,� It is the responsibility of the user to determine if the configuration is dangerous or could cause damage in any way.?,�
6 foot version available here: SF-1218-06B-14
8 foot version available here: SF-1218-08B-14
10 foot version available here: SF-1218-10B-14
Specifications

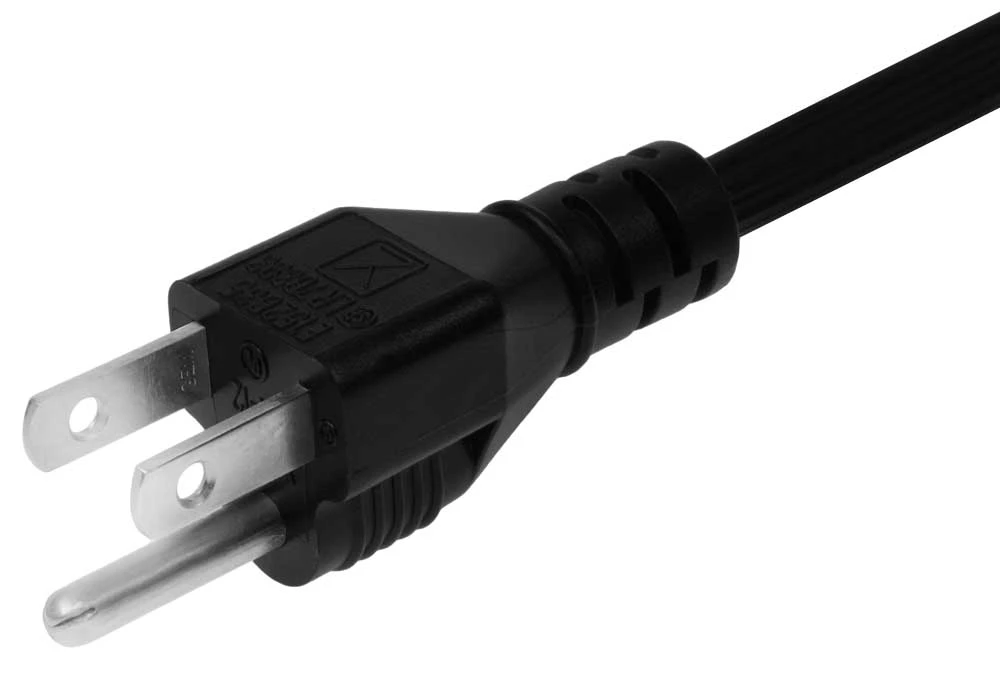

| Male Plug | NEMA 5-15P (molded with 35P PVC) |

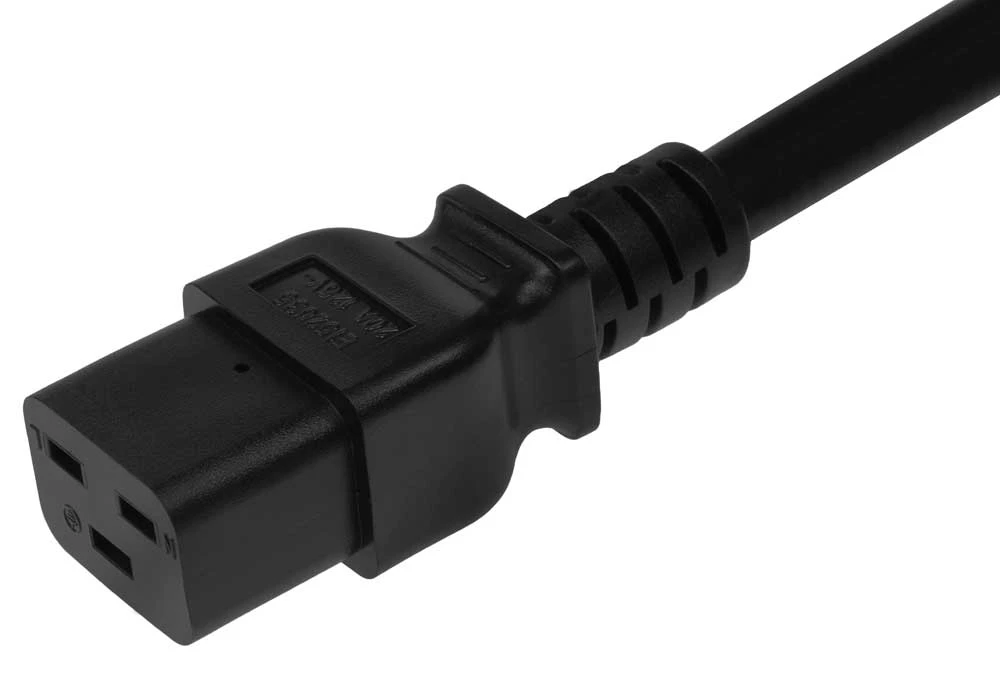

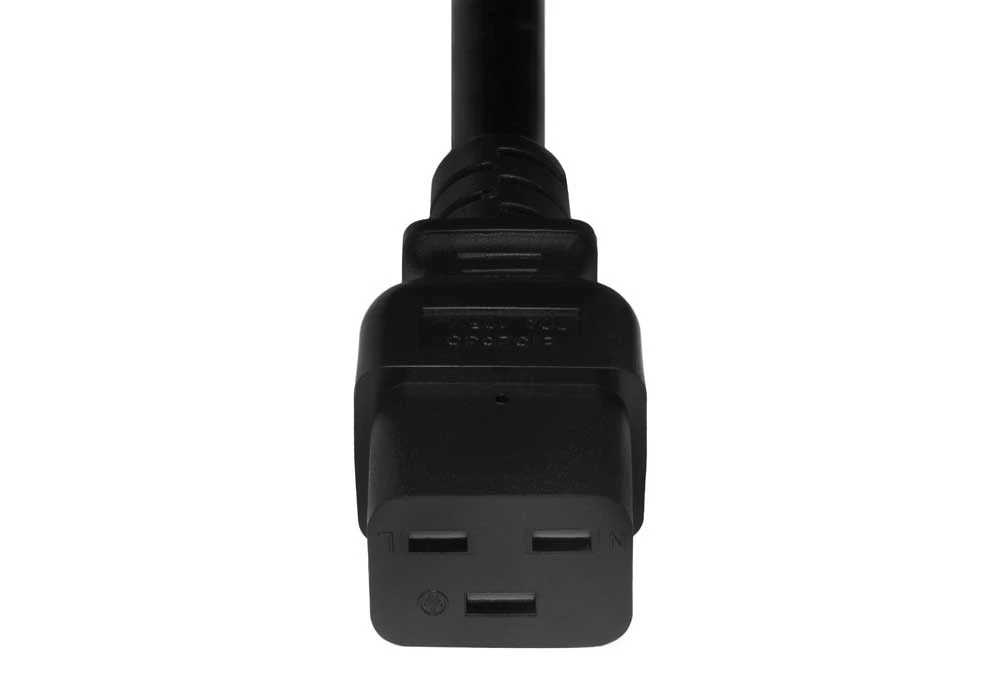

| Female Receptacle | IEC60320 C19 (molded with 35P PVC) |
| Wire Jacket Standard | SJT |
| Gauge | 14 AWG |
| Conductors | 3 Wire |
| Copper Wire Stranding | 41 strands of 0.254mm |
| Jacket Material | PVC |
| Temperature Rating | Up to 105C |
| Wire Outer Diameter | 9.3mm |
| Conductor Color Code | Black, White and Green / NACC (North American color code) |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 15 Amps |
| Cord Length | 3 Feet |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 |
| Country of Origin | China |
| Length | 3 ft, 6 ft, 8 ft, 10 ft |
|---|---|
| Color | Black |
| Gauge | 14 AWG |
