Description

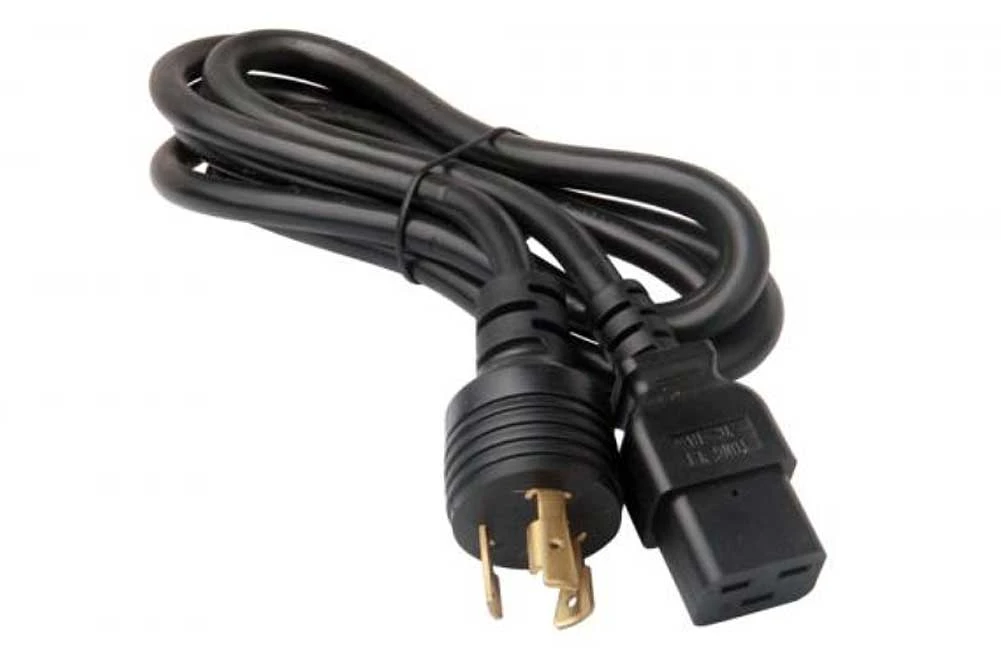

- NEMA L5-20P to C19 8 foot power cord
- NEMA L5-20P to IEC C19 with 12/3 SJT black wire
- 8 feet
- cUL approval.
- Rated up to 20A 125V.
Specifications | |

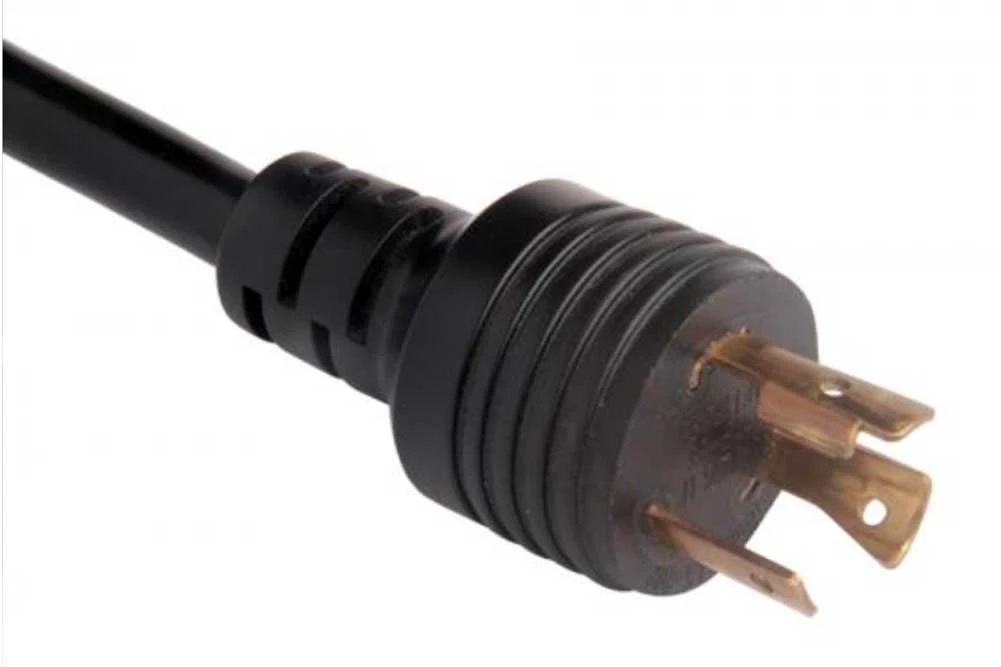

| Male Plug | NEMA L5-20P (molded with 35P PVC) |

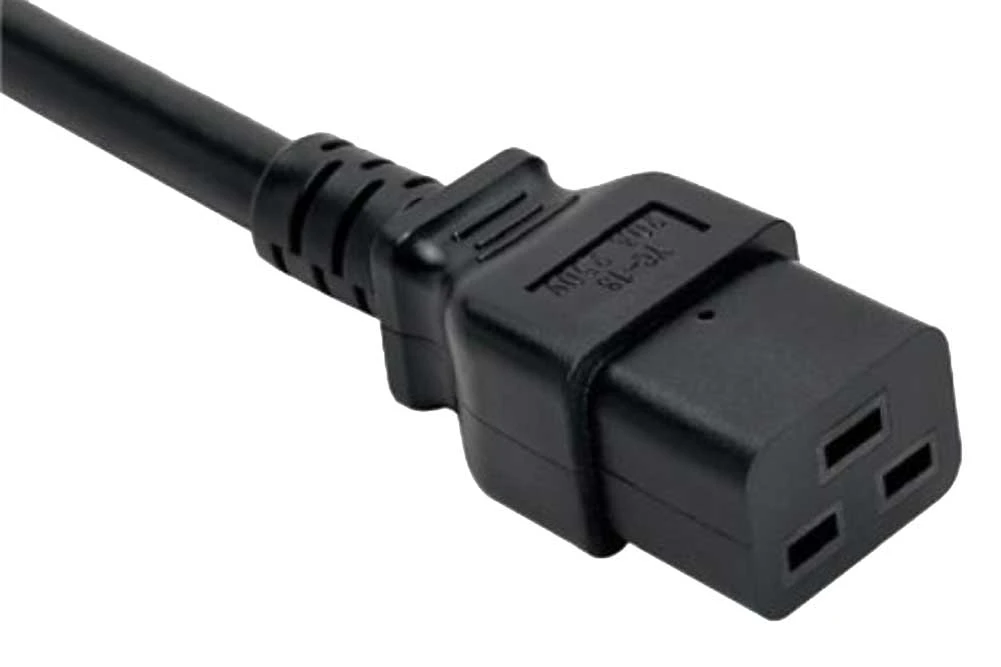

| Female Receptacle | IEC60320 C19 (molded with 35P PVC) |
| Wire Jacket Standard | SJT |
| Gauge | 12 AWG |
| Conductors | 3 wires |
| Copper Wire Stranding | 65 strands of 0.254mm |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 11.2mm |
| Conductor Color Code | Black, White and Green: NACC (North American color code) |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 20 amps |
| Cord Length | 8 feet |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 |
| Country of Origin | China |
