Description

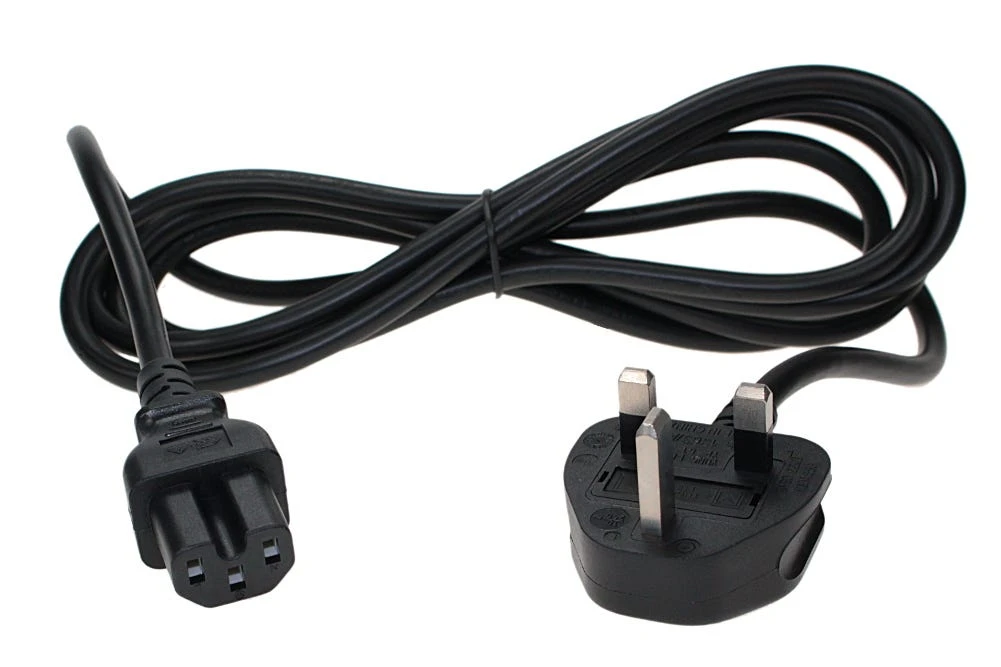

- UK BS1363 plug to IEC C15 with H05V2V2-F 1.0mm black wire
- 8.2 feet
- all UK and other country approvals.
- This UK to C15 power cord is also referred to as the BS1363 to C15 mains power lead or BS1363 to C15 mains cable.
| Specifications | |

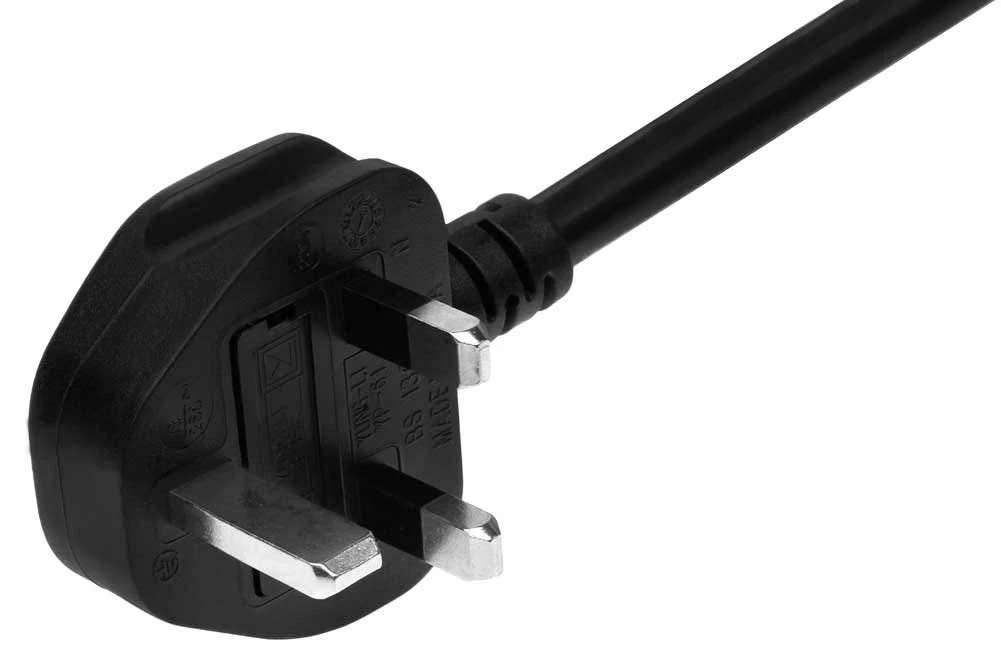

| Male Plug | BS1363 (molded with 50P PVC) |
| Female Receptacle | IEC60320 C15 (molded with 50P PVC) |
| Wire Jacket Standard | H05V2V2-F |
| Gauge | 1.0mm |
| Conductors | 3 Wire |
| Copper Wire Stranding | 32 strands of 0.202mm |
| Jacket Material | PVC |
| Temperature Rating | 90C |
| Wire Outer Diameter | 7.0mm |
| Conductor Color Code | blue, brown and green/yellow / ICC (International Color Code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 10 Amps |
| Cord Length | 2.5 meters (8.2 feet) |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | ASTA, SASO, PSB Spring and HKSI |
| Environmental Compliance | RoHS, REACH |
| Country of Origin | China |
