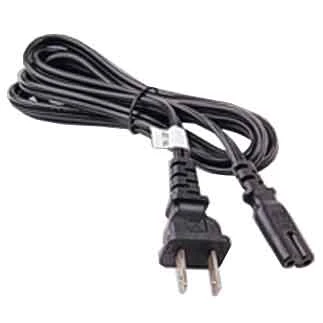

6ft USA NEMA 1-15P 2-pin To C7 Power Cord With 18/2 SPT-2

6ft USA NEMA 1-15P 2-pin To C7 Power Cord With 18/2 SPT-2 - Image 2

6ft USA NEMA 1-15P 2-pin To C7 Power Cord With 18/2 SPT-2 - Image 3

6ft USA NEMA 1-15P 2-pin To C7 Power Cord With 18/2 SPT-2

Name: Quality Meets Value: Shop 6ft USA NEMA 1-15P 2-pin To C7 Power Cord With 18/2 SPT-2 at Schuko shop in America.
SKU: SKU #P-ZIP-06-EN
Price: 8.40 USD
Availability: InStock

Original price was: $12.00.Current price is: $8.40.

USA 2 pin NEMA 1-15P to IEC C7 figure 8 receptacle. Category: American 2 Prong. 18/2 SPT-2 black wire. Rated up to 10A 125V. Length 6FT.

SKU: SKU #P-ZIP-06-EN Categories: IEC C7, Power Cords & Adapters

The quality you expect, the service you deserve.
Shop with Zero Worries
Multiple payment methods, 100% payment security
Quality and Affordability Combined

Description
Reviews (0)

Description

Connectors: USA 2 pin NEMA 1-15P to IEC C7 figure 8 receptacle
Category: American 2 Prong
18/2 SPT-2 black wire.
Rated up to 10A 125V
Length 6FT

Specification
Male Plug:	NEMA 1-15P 2P (molded with 35P PVC)
Female Receptacle:	IEC60320 C7 (molded with 35P PVC)
Wire Jacket Standard:	SPT-2
Gauge:	18 AWG
Conductors:	2 Wire
Copper Wire Stranding:	41 strands of 0.16mm
Jacket Material:	PVC
Temperature Rating:	Up to 105 C
Wire Outer Diameter:	6.8 0.2 by 3.4 0.1mm (Two dimensions because this is not round wire)
Conductor Color Code:	ribbed side and smooth side
Voltage:	Up to 125 Volts AC
Amperage:	Up to 10 Amps
Cord Length:	6 Feet
Color:	Black
Testing:	100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Environmental Compliance:	RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin:	China

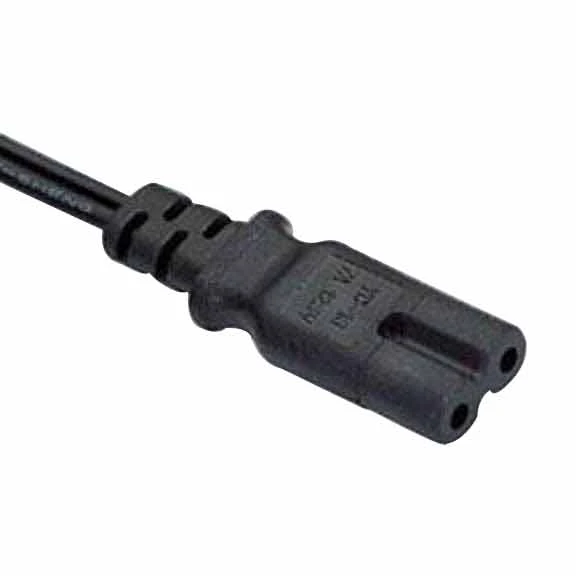

IEC C7
2 prong IEC C7 power cord receptacle. Built to the IEC 60320-C7 standard. Rated up to 10A 125V. Our IEC C7 power cord receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

NEMA 1-15P
USA 2 prong NEMA 1-15P power cord plug. Built to NEMA 1-15P standards. Rated up to 15A 125V, 13A 125V or 10A 125V. Our NEMA 1-15P plugs are fully molded with a low profile ergonomic design and come in a big variety or orientations, sizes and angles.
