Description
NEMA 5-15P version of this same cord available here: SF-1218-06B-14
NEMA 5-20P version of this same cord available here: SF-1718-06B
Specifications

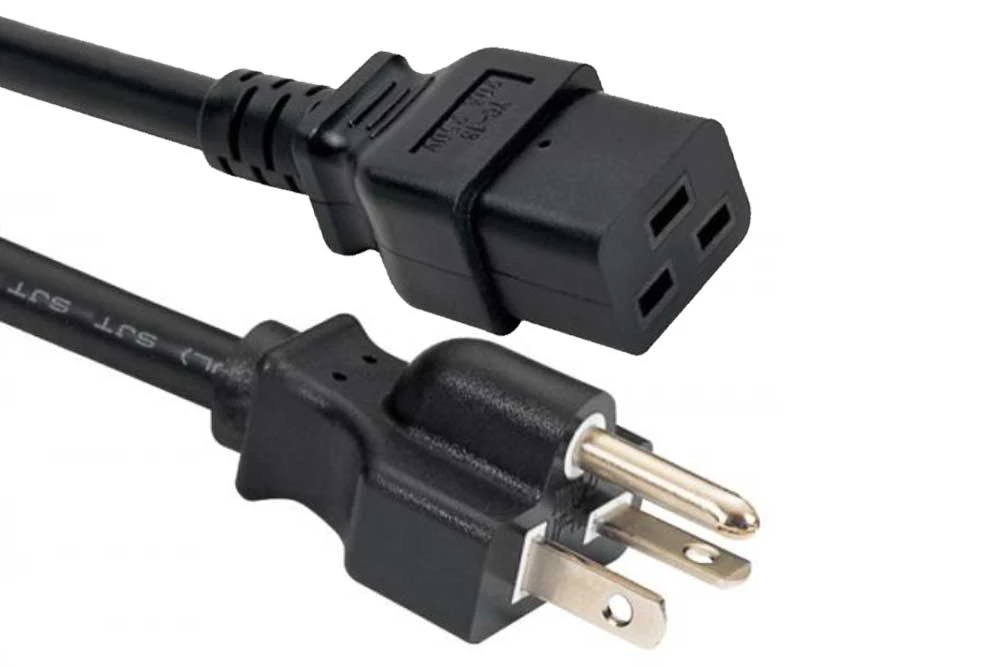

Male Plug
NEMA 6-20P (molded with 35P PVC)
Female Receptacle
IEC60320 C19 (molded with 35P PVC)
Wire Jacket Standard
SJT
Gauge
12 AWG
Conductors
3 Wire
Copper Wire Stranding
65 strands of 0.254mm
Jacket Material
PVC
Temperature Rating
Up to 105°C
Wire Outer Diameter
11.2mm
Conductor Color Code
Black, White and Green / NACC (North American color code)
Voltage
Up to 250 Volts AC
Amperage
Up to 20 Amps
Cord Length
6 Feet
Color
Black
Testing
100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Environmental Compliance
RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin
China
