Description

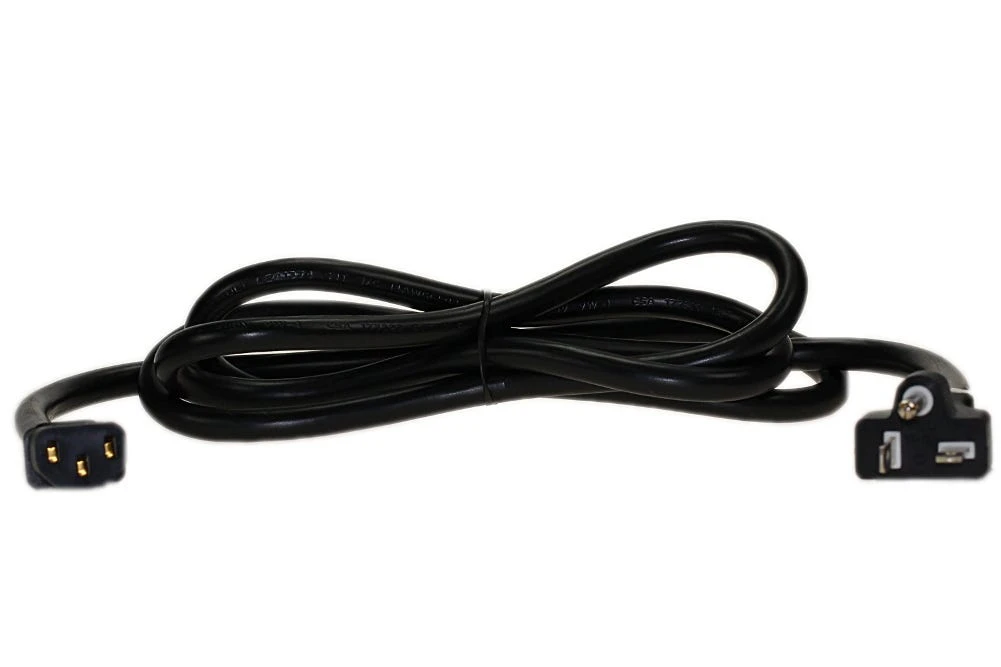

6-20P to C13 power cord: NEMA 6-20 plug to IEC C13 with 14/3 SJT
black wire, 6 feet with UL and CSA approvals. Rated up to 15A
250V.
Specifications

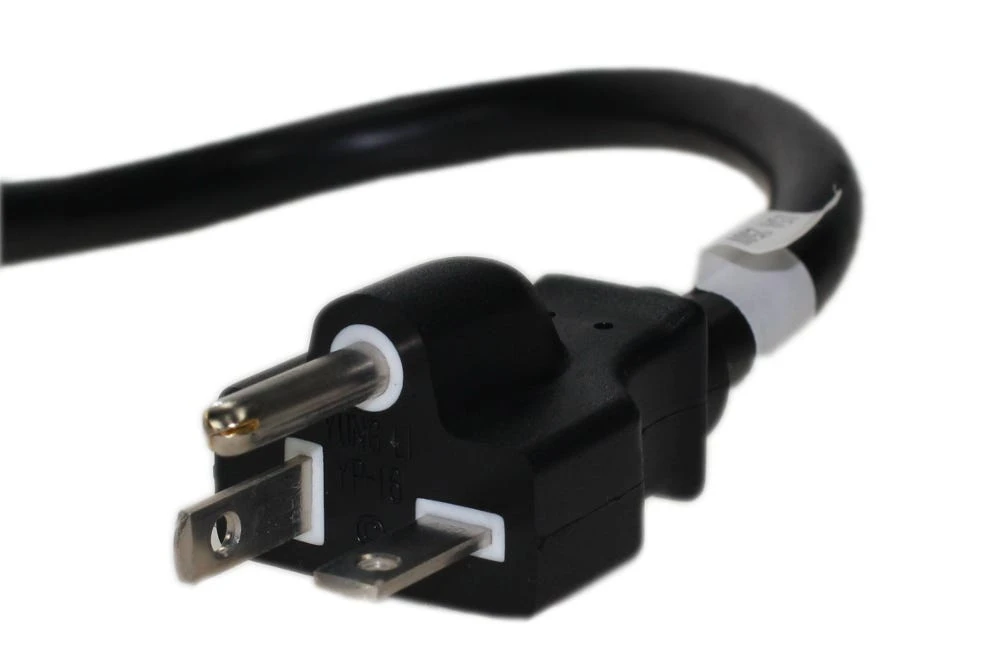

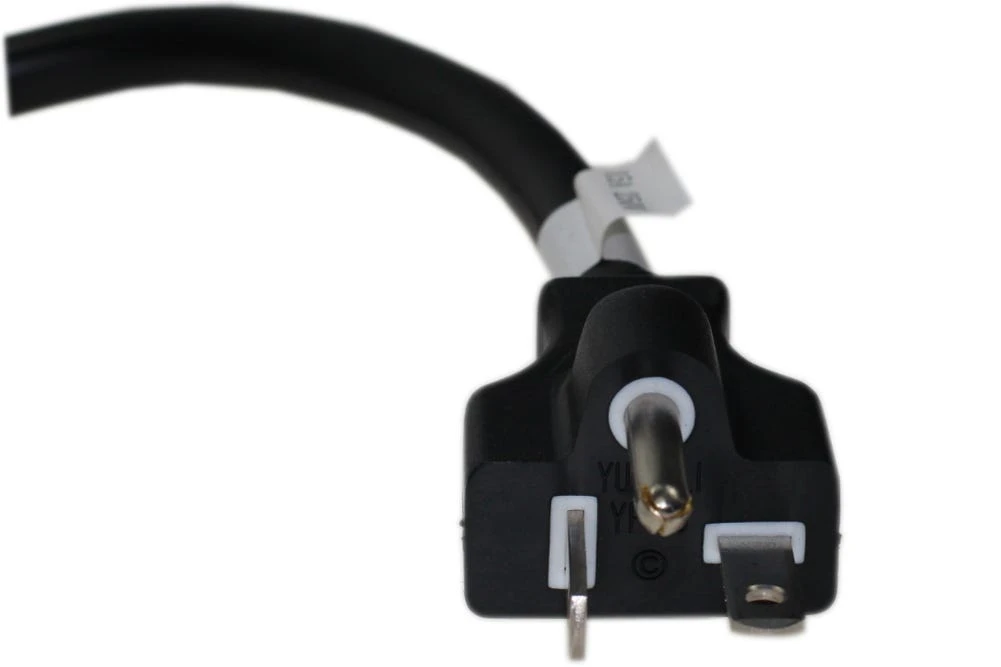

Male Plug
NEMA 6-20P (molded with 35P PVC)

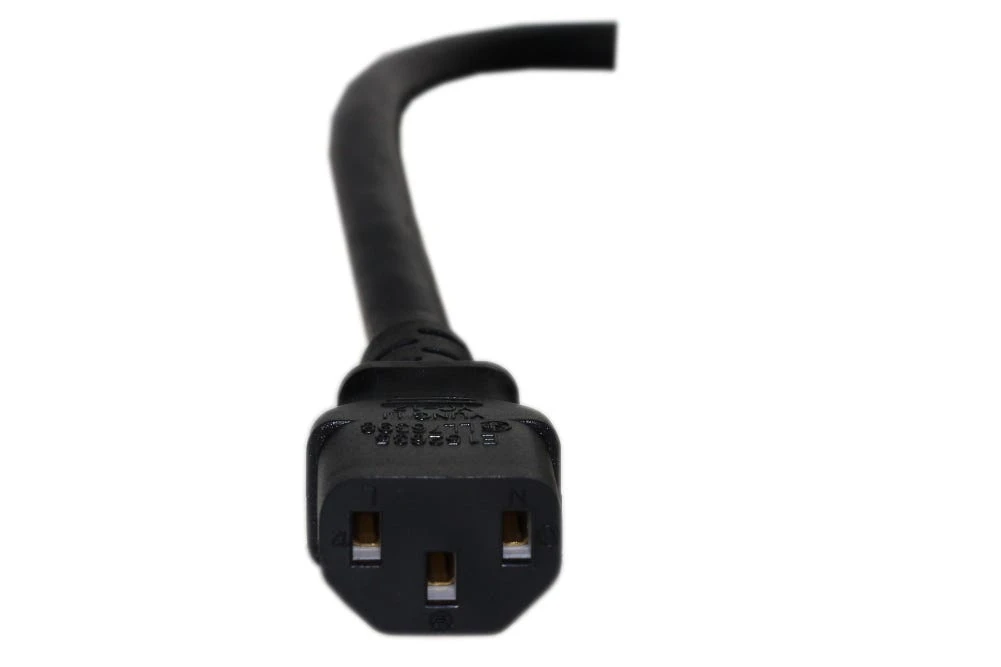

Female Receptacle
IEC60320 C13 (molded with 35P PVC)
Wire Jacket Standard
SJT
Gauge
14 AWG
Conductors
3 Wire
Copper Wire Stranding
41 strands of 0.254mm
Jacket Material
PVC
Temperature Rating
up to 105 degrees celcius
Wire Outer Diameter
9.3mm
Conductor Color Code
Black, White and Green / NACC (North American color code)
Voltage
Up to 250 Volts AC
Amperage
Up to 15 Amps
Cord Length
6 Feet
Color
Black
Testing
100% are individually tested for Hi-Pot (dielectric voltage
withstand test), opens, shorts and pinout.
Environmental Compliance
RoHS/RoHS2, REACH, Sony Green Partner, ISO14001:2004
Country of Origin
China
