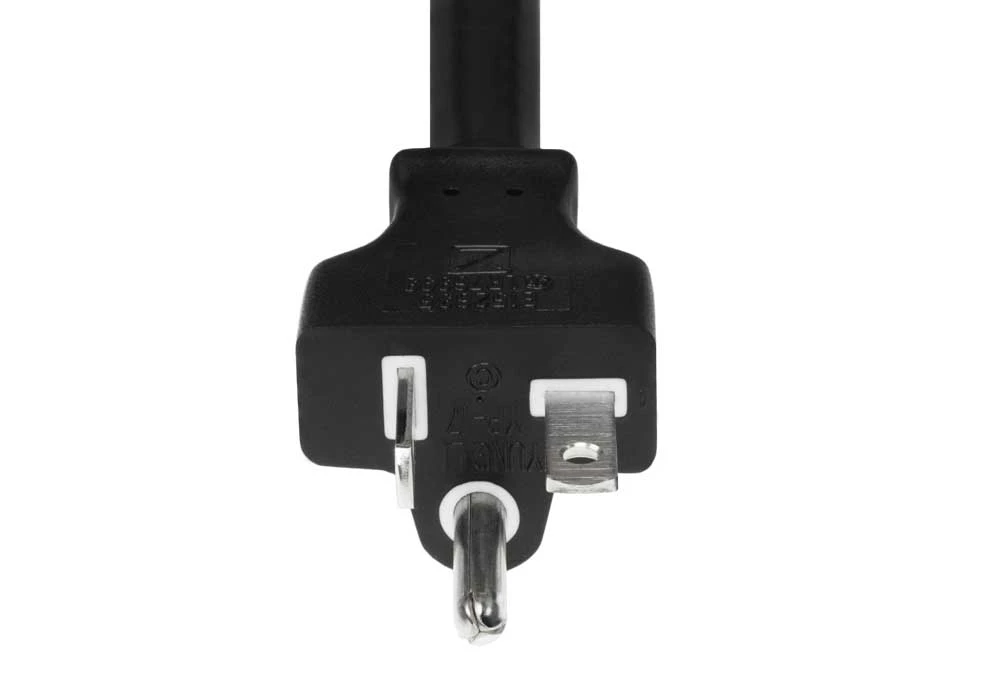

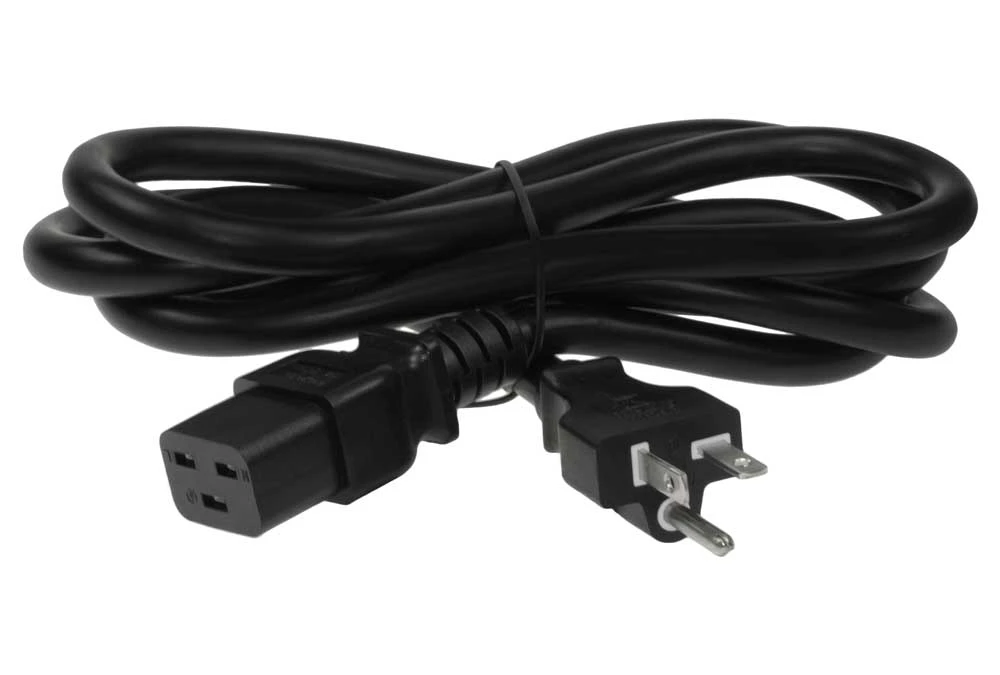

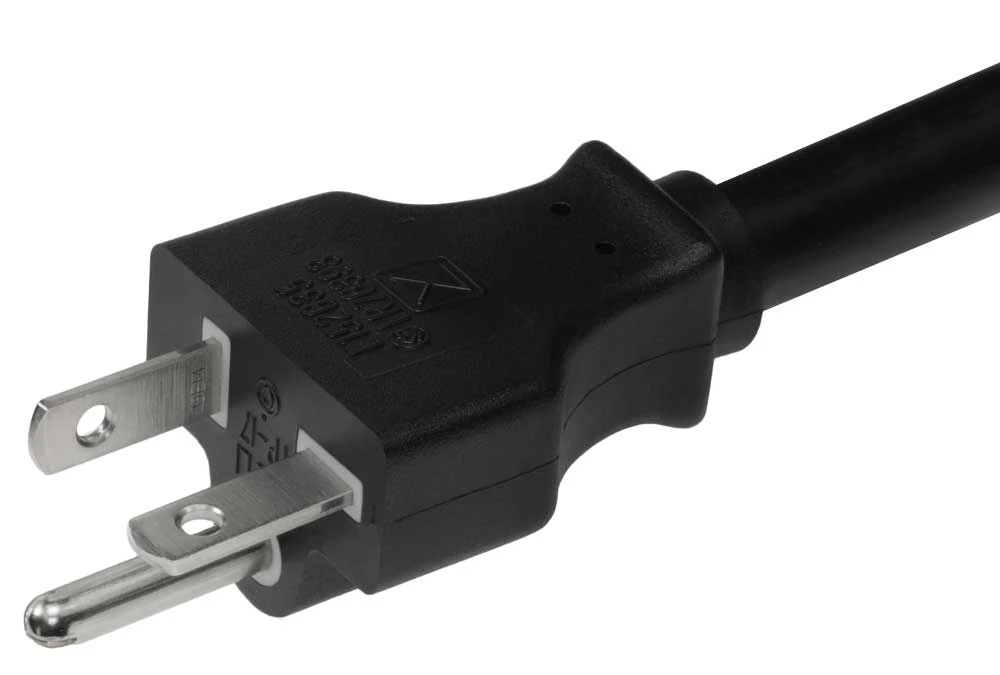

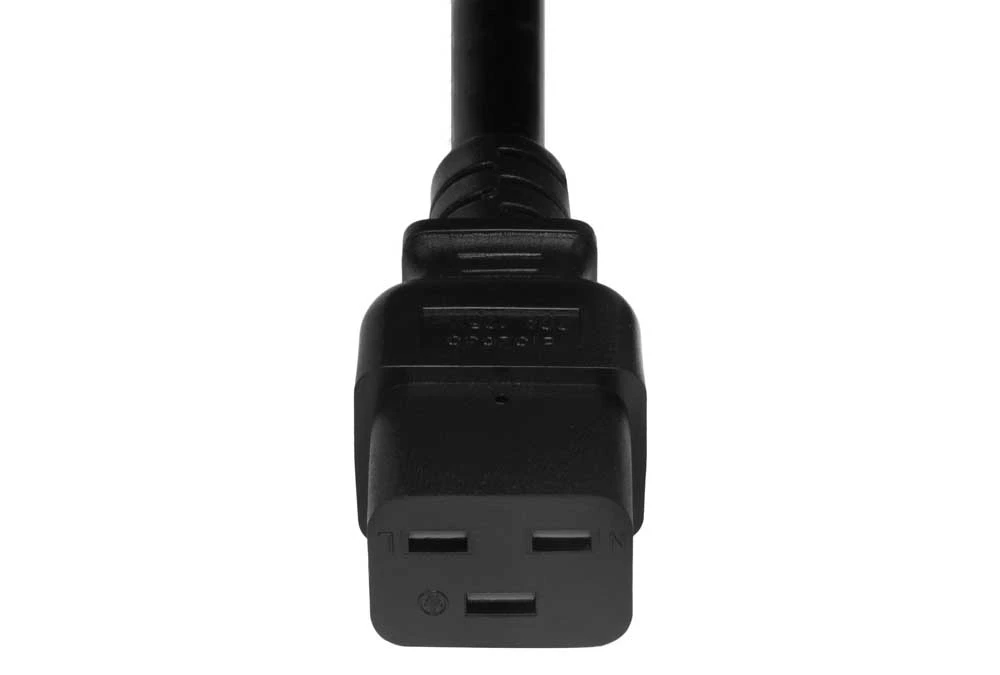

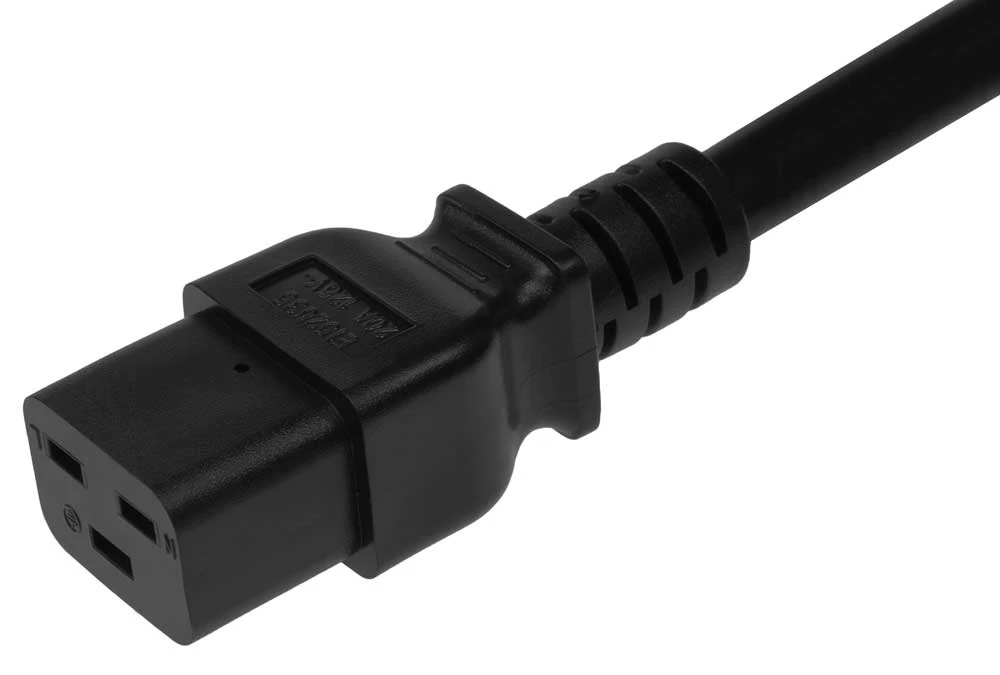

6ft NEMA 5-20P USA 3-pin Plug To C19 SJT Power Cord

6ft NEMA 5-20P USA 3-pin Plug To C19 SJT Power Cord - Image 2

6ft NEMA 5-20P USA 3-pin Plug To C19 SJT Power Cord - Image 3

6ft NEMA 5-20P USA 3-pin Plug To C19 SJT Power Cord - Image 4

6ft NEMA 5-20P USA 3-pin Plug To C19 SJT Power Cord - Image 5

6ft NEMA 5-20P USA 3-pin Plug To C19 SJT Power Cord

Name: High-Quality 6ft NEMA 5-20P USA 3-pin Plug To C19 SJT Power Cord at Schuko shop Minnesota USA.
SKU: SKU #SF-1718-06B
Price: 8.40 USD
Availability: InStock

Original price was: $12.00.Current price is: $8.40.

NEMA 5-20P to C19 power cord: NEMA 5-20P USA 3 pin plug to IEC C19 with 12/3 SJT black wire. 6 feet UL and CSA approvals. Rated up to 20A 125V.

SKU: SKU #SF-1718-06B Categories: IEC C19, Power Cords & Adapters

The quality you expect, the service you deserve.
Shop with Zero Worries
Multiple payment methods, 100% payment security
Quality and Affordability Combined

Description
Reviews (0)

Description

NEMA 5-20P to C19 power cord:
NEMA 5-20P USA 3 pin plug to IEC C19 with 12/3 SJT black wire
6 feet
UL and CSA approvals.
Rated up to 20A 125V.

NEMA 5-15P version of this same cord available here: SF-1218-06B-14

NEMA 6-20P version of this same cord available here: SF-1618-06B

Specifications
Male Plug	NEMA 5-20P (molded with 35P PVC)
Female Receptacle	IEC60320 C19 (molded with 35P PVC)
Wire Jacket Standard	SJT
Gauge	12 AWG
Conductors	3 wire
Copper Wire Stranding	65 strands of 0.254mm
Jacket Material	PVC
Temperature Rating	Up to 105C
Wire Outer Diameter	11.2mm
Conductor Color Code	Black, White and Green: NACC (North American color code)
Voltage	Up to 125 Volts AC
Amperage	up to 20 amps
Cord Length	6 feet
Color	Black
Testing	100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Environmental Compliance	RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin	China
