Description

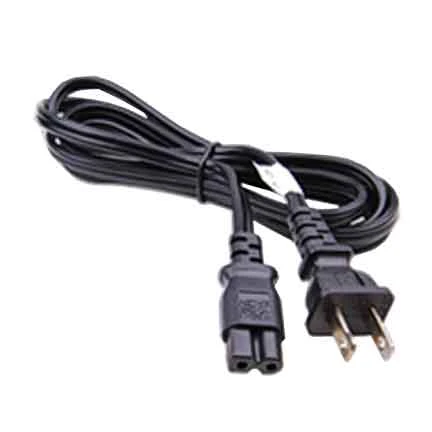

Polarized USA to C7 power cord: NEMA 1-15P USA polarized 2 pin plug to polarized C7 figure 8 receptacle with 18/2 SPT-2 black wire power cord. Rated up to 10A 125V, 6 feet long and cUL approved.
| Specifications | |
| Male Plug | NEMA 1-15P polarized plug (molded with 35P PVC) |
| Female Receptacle | IEC60320 C7 polarized receptacle (molded with 35P PVC) |
| Wire Jacket Standard | SPT-2 |
| Gauge | 18 AWG |
| Conductors | 2 Wire |
| copper wire stranding | 41 strands of 0.16mm |
| Jacket Material | PVC |
| Temperature Rating | Up to 60C |
| Wire Outer Diameter | 6.8 x 0.2 by 3.4 x 0.1mm (Two dimensions because this is not round wire) |
| Conductor Color Code | ribbed side and smooth side |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 10 Amps |
| Cord Length | 6 Feet |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 |
| Country of Origin | China |

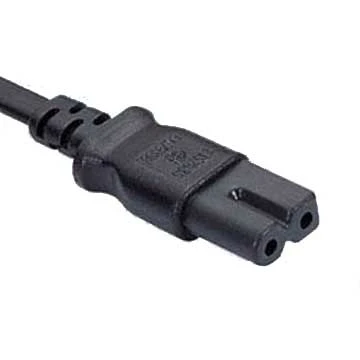

Polarized IEC C7
2 prong polarized IEC C7 receptacle.  Built to the IEC 60320-C7 polarized receptacle standard.  Rated up to 10A 125V.  Our IEC C7 polarized receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Polarized NEMA 1-15P
2 prong USA 1-15P polarized plug.  Designed to the polarized NEMA 1-15P standard.  Rated up to 10A 125V.  Our NEMA 1-15 polarized plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
