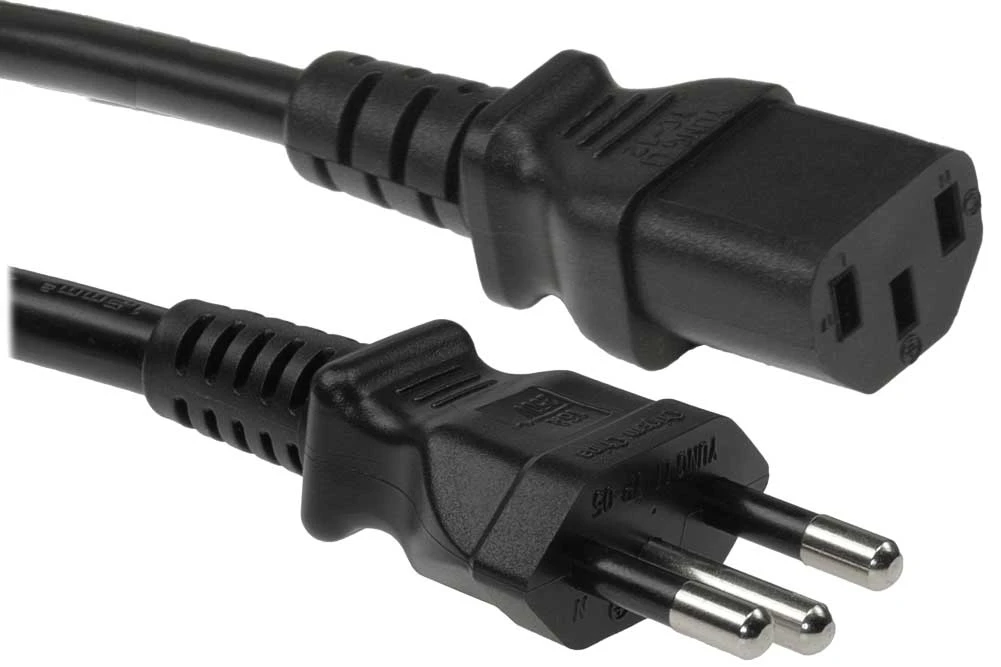

6ft Brazil Industrial 3P Plug To C13 Power Cord

Name: Exceptional 6ft Brazil Industrial 3P Plug To C13 Power Cord: Superior Quality at Competitive Prices in Michigan United States of America.
SKU: SKU #P-0512-06B
Price: 8.40 USD
Availability: InStock

Original price was: $12.00.Current price is: $8.40.

If your equipment requires a Power Cord with a 3P plug to IEC C13 connection; this model fits the bill. Made for use in Brazil; our industrial strength power cord is rated up to 16 amps and 250 volts and is INMETRO certified.

SKU: SKU #P-0512-06B Categories: International Cords, Power Cords & Adapters

The quality you expect, the service you deserve.
Shop with Zero Worries
Multiple payment methods, 100% payment security
Quality and Affordability Combined

Description
Reviews (0)

Description

Brazil industrial to C13 power cord: NBR14136 (aka IEC 60906-1) Brazil industrial 3P plug to IEC C13 with H05VV-F black wire, 6 feet. Rated up to 16A 250V and Brazilian INMETRO certified.

Specifications
Male Plug	Brazil standard NBR14136 but also known as IEC standard 60906-1 (molded with 50P PVC) Note: larger industrial plug
Female Receptacle	IEC60320 C13 (molded with 50P PVC)
Wire Jacket Standard	H05VV-F
Gauge	1.5mm
Conductors	3 Wire
copper wire stranding	48 stands of 0.202×0.01mm
Jacket Material	PVC
Temperature Rating	Up to 70°C
Wire Outer Diameter	8.5 x 0.15mm
Conductor Color Code	Blue, Brown and Green with Yellow stripe / ECC (European color code)
Voltage	Up to 250 Volts AC
Amperage	Up to 15 Amps
Cord Length	6 Feet
Color	Black
Testing	100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications	Brazil INMETRO
Environmental Compliance	RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin	China
