Description

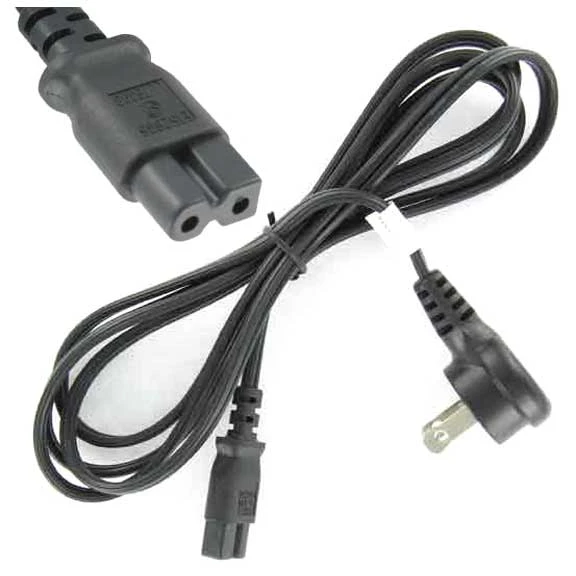

Angled and polarized USA to C7 power cord: NEMA 1-15P polarized low profile down angle USA 2 pin plug to polarized IEC C7 with 18/2 SPT-2 wire, 6 foot power cord with cUL approval.
| Specification | |
| Male Plug | NEMA 1-15P down angle polarized plug (molded with 35P PVC) |
| Female Receptacle | IEC60320 C7 polarized receptacle (molded with 35P PVC) |
| Wire Jacket Standard | SPT-2 |
| Gauge | 18 AWG |
| Conductors | 2 Wire |
| copper wire stranding | 41 strands of 0.16mm |
| Jacket Material | PVC |
| Temperature Rating | Up to 60°C |
| Wire Outer Diameter | 6.8 X 0.2 by 3.4 X 0.1mm (Two dimensions because this is not round wire) |
| Conductor Color Code | ribbed side and smooth side |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 10 Amps |
| Cord Length | 6 Feet |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 |
| Country of Origin | China |
