Description

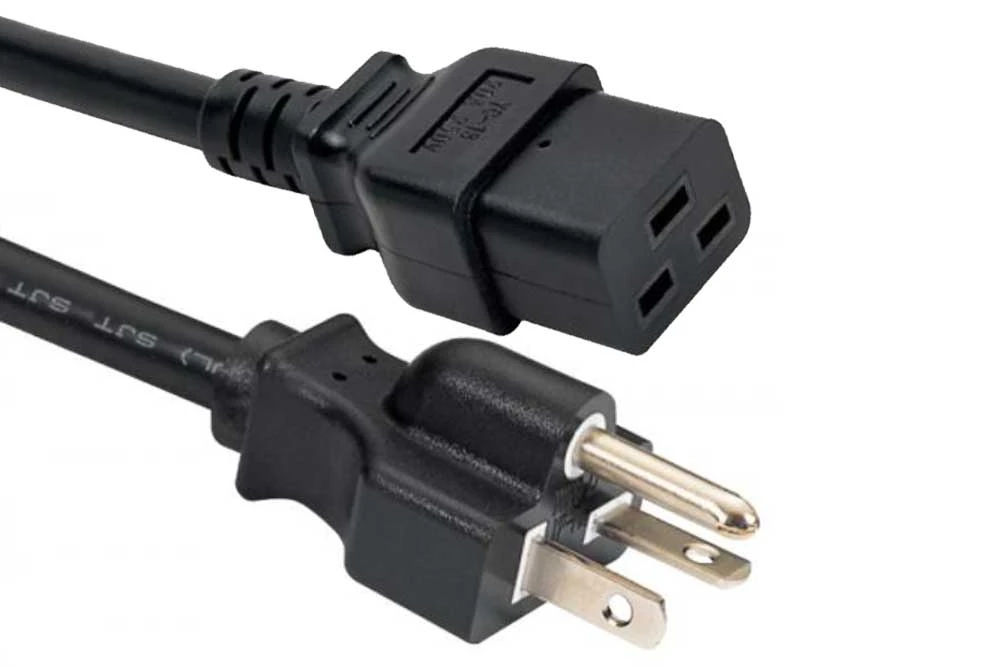

NEMA 6-20P to C19 power cord:Â NEMA 6-20P USA 3 pin plug to IEC C19 with 12/3 SJT black wire, 6 feet with UL and CSA approvals. Rated up to 20A 250V.
| Male Plug | NEMA 6-20P (molded with 35P PVC) |
| Female Receptacle | IEC60320 C19 (molded with 35P PVC) |
| Wire Jacket Standard | SJT |
| Gauge | 12 AWG |
| Conductors | 3 Wire |
| Copper Wire Stranding | 65 strands of 0.254mm |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 11.2mm |
| Conductor Color Code | Black, White and Green / NACC (North American color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 20 Amps |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Environmental Compliance | RoHS, REACH |
| Country of Origin | China |
